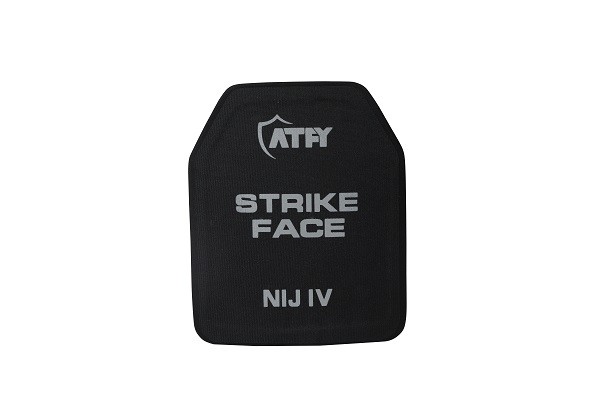

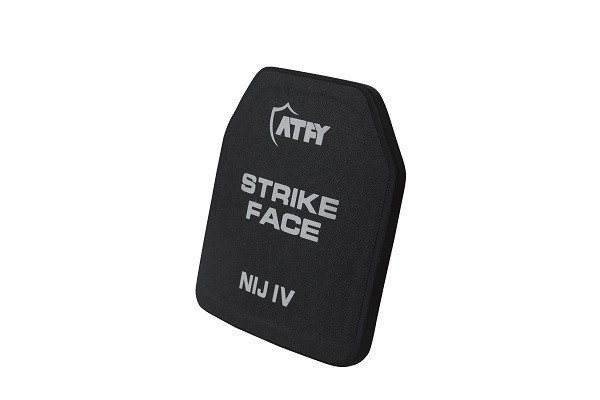

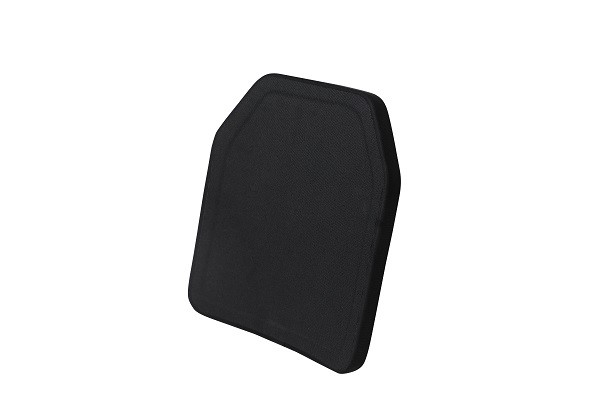

Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV

  • Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV
  • Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV
  • Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV
  • Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV
  • Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV
Place of Origin Hebei, China
Brand Name ATFY
Certification ISO 9001
Model Number FDB-III/IV
Minimum Order Quantity 2 PCS
Price USD 45.5~50/PC
Packaging Details Carton 31.5*29.5*35.5cm, 12pcs/Carton
Delivery Time ≤10 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 15000 Pieces Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Bulletproof Plate Protection Level NIJ III/NIJ IV
Shape Single Curve/Multi Curve Material Ceramic Composition
Weight Less Than 3.1kg Size 25*30cm
Color Black Out Cover Polyester Waterproof
High Light

IV Bulletproof plate

,

NIJ IV Bulletproof plate

,

NIJ III Bulletproof plate
Leave a Message
Product Description

Product Description

1. Product Infomation: Bulletproof hard plate for NIJ 0101.06 level III/IV
a) 99% AL2O3, SIC, B4C are used as ceramics
b) Bulletproof hard plates are offered at desired international levels
c) Multi curve, single curve, monolithic and tiles are for your solutions
d) Different models and sizes of plates can be customized



2. Application: Bulletproof hard plates for bulletproof vest, ballistic shield,vehicle armor and ship armor


3. Ballistic Protection Performance: certified NIJ-STD-0101.06 level III / III+ / III++ / IV against high threat 7.62mm AP / API ,multi-hits capabilities.



Product Parameters



1. Construction


a) In Conjuction With (ICW) IIIA or lower threat level soft armor panel
b) Stand Alone(SA) which means it can protect against the III/IV rating threat without any soft armor ballistic panels / inserts.


2. Contour: Curved / flat plate /customizable


3. Outer Cover Processing


a) Durable black water proof nylon fabric padded with foaming cloth on the edge of the plates (standard)
b) Wrapped with wear resistance elastic strap or rubber frame on the edge of the plates (optional)
c) Advanced Line-X( polyurea) coating finish all around the plate surface (optional)



Carrier Material
Polyester waterproof
bulletproof Material
PE+Aluminium
Protection Level
NIJ Standard-0101.06 level III ICW IIIA 9mm Vest
NIJ Standard-0101.06 level III
NIJ Standard-0101.06 level IV ICW IIIA 9mm Vest
NIJ Standard-0101.06 level IV
Protection
Area (mm)
  250*300*17
                     250*300*18


  250*300*20
  250*300*22
Bulletproof material Weight(kg)
     2.4±0.05
                            2.6±0.05
      2.8±0.05
                               3.1±0.05
Carrier Material
Polyester waterproof
bulletproof Material
PE+Silicon carbide
Protection Level
NIJ Standard-0101.06 level III ICW IIIA 9mm Vest
NIJ Standard-0101.06 level III
NIJ Standard-0101.06 level IV ICW IIIA 9mm Vest
NIJ Standard-0101.06 level IV



Protection
Area (mm)


250*300*17
       250*300*18


  250*300*22
 250*300*24
Bulletproof material Weight(kg)
1.8±0.05
1.9±0.05
2.4±0.05
             2.6±0.05



Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV 0





Test Report:

Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV 1Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV 2









Related Products:

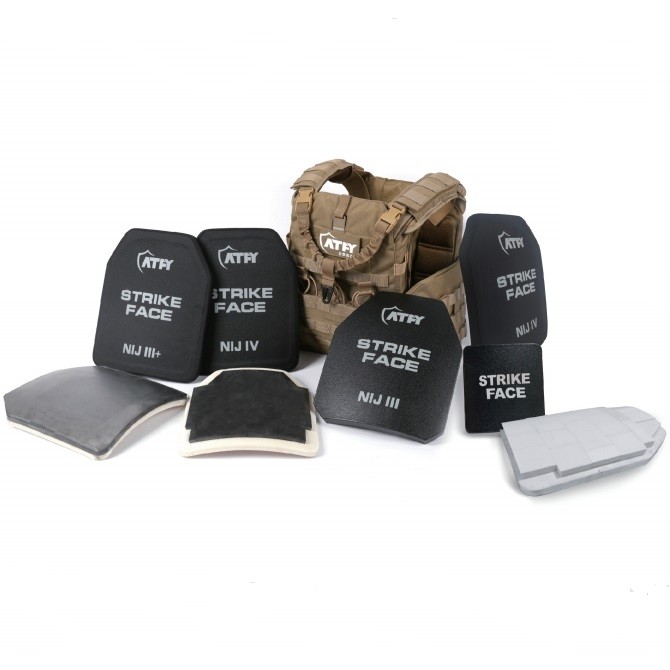

Military Police Protective Equipment Insert Protective Secutiry PE Bulletproof Plates NIJ III/IV 3
